MFC Quick Start Guide (Part 2): Buttons

Create UI

1. Click the Resource View tab
2. Click the dialog. In this case it is IDD_MFC101_DIALOG

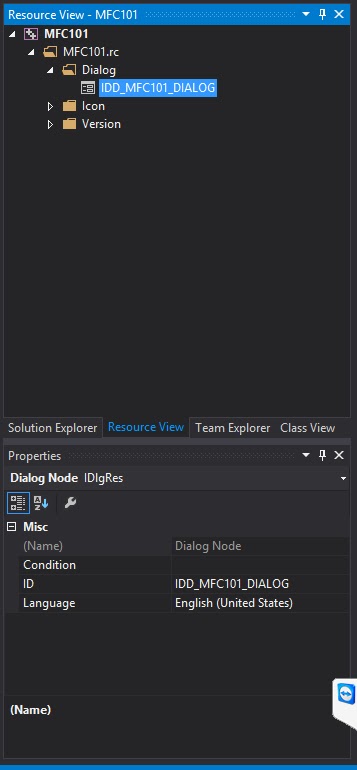

   (Fig. 2.1: Resource view)



3. In the Property panel, you can see the dialog has a ID which is IDD_MFC101_DIALOG. Remember that
4. Click on the Toolbox tab on the left hand side of the window

   (Fig 2.2: Toolbox)
5. A list of selections should appear. Click on button and drag it to your dialog.

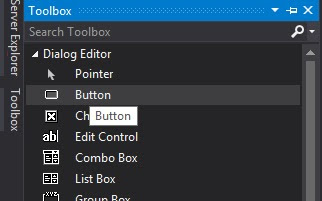

   (Fig 2.3 Button)


   (Fig 2.4 Dialog with a button)
6. Do this three times.

   (Fig 2.5: 3 buttons)
7. Add a static text to the dialog. Inside the Property panel, change Caption to “Number:”

    (Fig. 2.6: Property)


8. Add another static text to the dialog, inside the Property panel:
• delete the text in the Caption field
• Change the IDD to IDC_TEXT_AREA
• Change Client Edge to True

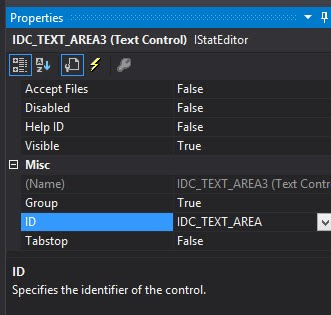

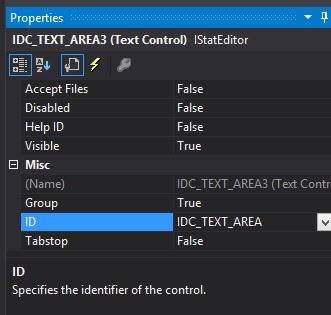

  (Fig. 2.7: ID)



  (Fig. 2.8: Client Edge)

Create Control Variable

1. Right click the text box with ID IDC_TEXT_AREA
2. Choose Add variable

   (Fig. 2.9: Add variables)



3. This window should appear
• Change Access to private
• Set Category to control
• Set variable name to be m_sNumberCount

  (Fig. 2.10: Control)


• Click Finish

Add Event handler

1. Double click Button 1 (ID: IDC_BUTTON1)
2. The content of MFC101Dlg.cpp should appear. And a new function called “void OnBnClickedButton1()” is added automatically.

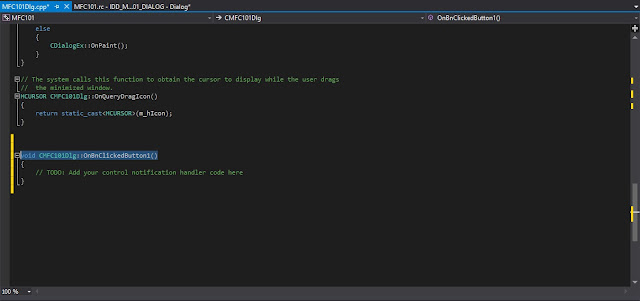

   (Fig. 2.11)


3. Inside MFC101Dlg.h, add a private member variable called m_nNumberCount

   int m_nNumberCount;



   (Fig. 2.12)


4. Back to MDC101Dlg.cpp, inside the function OnInitDialog(), initialize m_nNumberCount


   m_nNumberCount = 0;





   (Fig. 2.13)


5. Inside the function OnBnClickedButton1(), add the following code:

   m_nNumberCount++;
   m_sNumberCount.Format(_T("%d"), m_nNumberCount);
   UpdateData(FALSE);



   (Fig. 2.14)


6. Double click Button 2 (ID: IDC_BUTTON2)
7. Inside the function OnBnClickedButton2(), add the following code:

   m_nNumberCount = m_nNumberCount + 2;
   m_sNumberCount.Format(_T("%d"), m_nNumberCount);
   UpdateData(FALSE);




8. Double click Button 3 (ID: IDC_BUTTON3)
9. Inside the function OnBnClickedButton3(), add the following code:

   m_nNumberCount = m_nNumberCount + 3;
   m_sNumberCount.Format(_T("%d"), m_nNumberCount);
   UpdateData(FALSE);





Build & Run

1. Press Ctrl+shift+B to build the solution
2. Press Ctrl+F5 to run (without debugging). The dialog should pop up.

   (Fig. 2.15)


3. Try clicking different buttons and see the effect.
