MFC Quick Start Guide (Part 3): Edit Control and Spin Control

1. Click Edit Control on the Toolbox panel and drag it to your dialog



   (Fig. 3.1: Edit Control)
2. Do it three times, and rename the IDs of them to IDC_RED_EDIT, IDC_GREEN_EDIT and IDC_BLUE_EDIT (from top to bottom)



   (Fig. 3.2: Dialog)


3. Change the Number field in the Property panel to True
4. Now we are limiting the value bound of the 3 edit boxes to a range from 0 to 255.
• Double click the first edit box, a function called OnEnChangeRedEdit() would be automatically added to MFC101Dlg.cpp
• Add the private member variable m_nRedVal to MFC101Dlg.h



  int m_nRedVal;






  (Fig. 3.3: private member variable)
• Back to MFC101Dlg.cpp, initialize the variable inside the function OnInitDialog()



  m_nRedVal = 0;


• Add the following code to the function



  char acStr[5] = "";
  CEdit* pRedBox = (CEdit *)GetDlgItem(IDC_RED_EDIT);
  pRedBox->GetWindowText(LPTSTR(acStr), 256);
  if (!(atoi((const char *)acStr)))
      pRedBox->SetWindowText(_T(""));
  else
  {
      if ((atoi((const char *)acStr)) > 255)
      {
          pRedBox->SetWindowText(_T("255"));
      }
      else if ((atoi((const char *)acStr)) < 0)
      {
          pRedBox->SetWindowText(_T("0"));
      }
      m_nRedVal = atoi((const char *)acStr);
  }





  (Fig. 3.4: Code)
• This segment of code may not work due to encoding. If it happens, Alt+Enter and change the Encoding accordingly



  (Fig. 3.5: Property Page)
5. Repeat step on the other 2 edit boxes.

Spin Control

1. Click Spin Control on the Toolbox panel and drag it to somewhere beside your button
2. Repeat for the other 2 buttons



   (Fig. 3.6: Spin Control)
3. Change the IDs of the buttons to IDC_RED_SPIN, IDC_GREEN_SPIN and IDC_BLUE_SPIN
4. In the Property panel, change Set Buddy Integer to True
5. Inside the OnInitDialog() function, add the following code:



   CSpinButtonCtrl* pSpinColorCtrl = (CSpinButtonCtrl*)GetDlgItem(IDC_RED_SPIN);
   pSpinColorCtrl->SetRange(0, 255);
   pSpinColorCtrl->SetBuddy((CEdit *)GetDlgItem(IDC_RED_EDIT));
   pSpinColorCtrl->SetPos(m_nRedVal);

   UDACCEL AccellValue1;
   AccellValue1.nInc = 1;   // Set how many the value would increase/decrease when a button is clicked
   pSpinColorCtrl->SetAccel(1, &AccellValue1);


6. For the other 2 buttons, add:



   pSpinColorCtrl = (CSpinButtonCtrl*)GetDlgItem(IDC_GREEN_SPIN);
   pSpinColorCtrl->SetRange(0, 255);
   pSpinColorCtrl->SetBuddy((CEdit *)GetDlgItem(IDC_GREEN_EDIT));
   pSpinColorCtrl->SetPos(m_nGreenVal);

   AccellValue.nInc = 1;
   pSpinColorCtrl->SetAccel(1, &AccellValue);

   pSpinColorCtrl = (CSpinButtonCtrl*)GetDlgItem(IDC_BLUE_SPIN);
   pSpinColorCtrl->SetRange(0, 255);
   pSpinColorCtrl->SetBuddy((CEdit *)GetDlgItem(IDC_BLUE_EDIT));
   pSpinColorCtrl->SetPos(m_nBlueVal);

   AccellValue.nInc = 1;
   pSpinColorCtrl->SetAccel(1, &AccellValue);

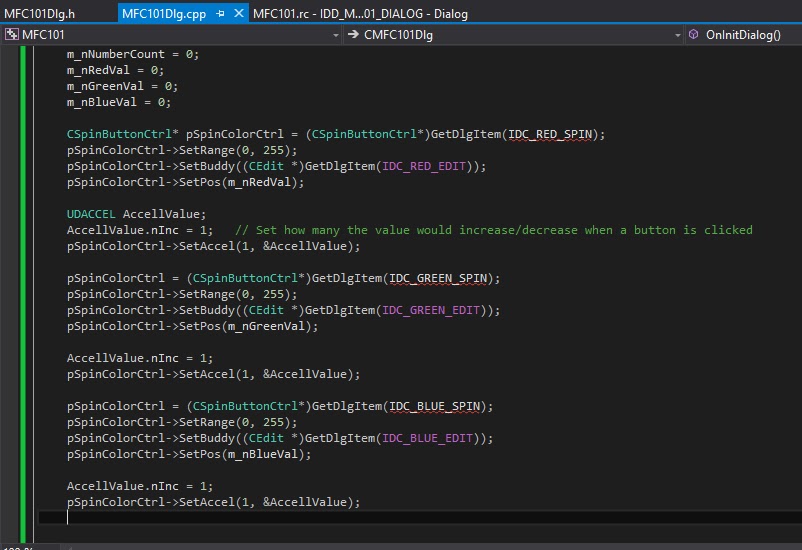

   (Fig.3.7: Code )

Build & Run

1. Press Ctrl+shift+B to build the solution
2. Press Ctrl+F5 to run (without debugging).
3. Try clicking the spin buttons and what happen.
